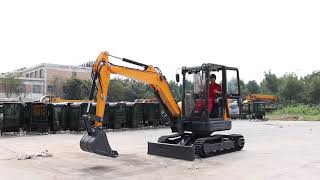

New Hightop HT35 mini excavator
≈ SGD 23,330
Shandong
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+86 181 620...
Show
+86 181 6205 2962
27,760,000,000 kg
Digging depth
1.65 m
China, Shandong
6,000 kg
Digging depth
3.83 m
China, Shanghai
The overall appearance adopts a tailless design, which is flexible and versatile. It can operate in narrow spaces such as urban streets and basements. The ultra-small turning radius ensures the convenience of construction and improves construction safety.
CLOSED CABIN
The cab adopts an integrated steel structure design, which is safe and reliable. It is equipped with air conditioning. In order to further improve the comfort, the space is increased to the maximum under the space standard of the cab of the same level.
DRIVING FUNCTIONS
The working device has a deflection function and can be combined with the upper rotation. The working device has a new optimized design, a strengthened deflection body, and a greatly improved life.
MULTIPLE ATTACHMENTS AVAILABLE
This 1ton mini excavator can be installed with hydraulic quick hitch,narrow bucket,hammer,auger,tilt bucket,ripper,rake,rotary grapple,tree shears and lawn mower.Let you only need to buy an excavator to do all kinds of work.
BRAND ENGINE
Kubota 1703,18.5KW/2200rpm, EURO 5 emission standards, to ensure strong power output, reliable and durable, to meet customer requirements.
VALVE +PUMP
Load-sensitive main valve:Highly coordinated operation and high efficiency.Plate-type structure, flexible adjustment.Precise control and good micro-movement.Small pressure loss and more energy saving .Comfortable operation
PARAMETERS
Total length/transportation length A 5029mm
Total width B 1720mm
Upper width D 1554mm
Overall height (shed roof/cab roof) C 2580
Standard track plate width F 300mm
Minimum ground clearance H 319mm
Tail turning radius I 885mm
Track ground length J 1645mm
Track length K 2150mm
Shovel height R 393mm
Shovel digging depth T 461mm
Performance Parameters
Working mass(KG) 3500kg
Bucket capacity:3 0.12m³
Rated power:18.5KW/2200rpm
Rotary speed 9r/min
Climbing capacity 58%
Bucket digging force 30.4KN
Bucket digging force 18.2KN
Operating range (unit mm)
Maximum digging heighta 4938mm
Maximum unloading heightb 3376mm
Maximum digging depth c 3106mm
Maximum digging distance d 5175mm
Minimum turning radius e 2634mm
Maximum height at minimum turning radius f 3716mm
Engine Model:Kubota D1703, three cylinder direct injection
Rated power 18.5KW/220rpm
Oil Capacity 5.1L
Flow Sharing Main Valve HVSE-09-09-P270-BE212
Flow Sharing Main Valve Pressure 24MP
System flow rate 79.2L/min
Swash plate type axial piston variable pump HP5V45/AV10RB2S2MGA-L1/1-HT1
Swash plate type axial piston variable pump displacement 40cc
Maximum speed 3250r/min
Traveling motor:Variable piston motor”
Travel speed 4.2/2.4km/h
Fuel tank capacity 50L
Cooling system capacity 5.05L
Hydraulic oil tank capacity 55L
