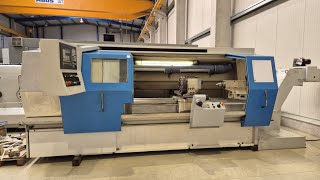

VDF Boehringer DUS 560 ti x 1500 metal lathe
Monheim am Rhein6666 km to "United States/Columbus"
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
Germany
50 Hz
Germany, Location:düsseldorf
turning length 1500 mm
control Siemens SINUMERIK 810D
total power requirement kW
weight of the machine ca. 5,2 t
dimensions of the machine ca. 6648 x 2735 x 1973 mm
Centre height 570 mm
Centre height over flat track 280 mm
Diameter over bed 570 mm
Diameter over cross slide 365 mm
x-axis 345mm
x-axis feed max. 2500 mm/min
z-axis feed max. 5000 mm/min
x-axis rapid traverse max. 5000 mm/min
z-axis rapid traverse max. 10000 mm/min
x-axis feed force 7,100 N
z-axis feed force 12500 N
Feed control 0% - 120%
max. workpiece weight from front edge of clamping device 400 kg
with tailstock 1000 kg
with tailstock and 1 steady rest 1300 kg
with tailstock and 2 steady rests 1600 kg
Main spindle:
Spindle / bore / spindle Ø in the front bearing DIN 52027 - A 8 / Ø62 / Ø100
Inner taper of the main spindle metric 70
Drive power 25 kW 60%; 20 kW 100% ED
Torque max. 1800 Nm / 1400 Nm
2 gear stages
Speed range 3-2500 rpm
Speed range gear step 1: 3-500 rpm
Speed range gear step 2: 15-2500 rpm
Tool:
SAUTER 8-station turret: Ø40
Turret no.: 0.5.480.516-089768 ComNo. 06.09216
Tool holders DIN 69880 / Ø50
Lathe tool - cross-section according to DIN 770 h x w 32 x 25
Tailstock:
Quill diameter 100 mm
Inner taper quill MK 5
Quill travel 190 mm
Cooling:
frequency controlled 1 bar/10 ltr - 4 bar/20 ltr; 2-stage programmable
Dimensions:
max. machine size (without chip conveyor) 4300 x 2131 x 1973 mm
Space requirement (incl. chip conveyor) 6648 x 2735 x 1973 mm
Accessories:
3-jaw chuck, diameter 250 mm
chip conveyor, make KNOLL, built 2015
fixed steady rest
moving steady rest
various tool holders
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Drehdurchmesser 570 mm
Drehlänge 1500 mm
Steuerung Siemens SINUMERIK 810D
Maschinengewicht ca. 5,2 t
Raumbedarf ca. 6648 x 2735 x 1973 mm
Zusatzinformationen
Verfahrwege:
Spitzenhöhe 570 mm
Spitzenhöhe über Flachbahn 280 mm
Durchmesser über Bett 570 mm
Durchmesser über Planschlitten 365 mm
x-Achse 345 mm
x-Achse Vorschub max. 2500 mm/min
z-Achse Vorschub max. 5000 mm/min
x-Achse Eilgang max. 5000 mm/min
z-Achse Eilgang max. 10000 mm/min
x-Achse Vorschubkraft 7100 N
z-Achse Vorschubkraft 12500 N
Vorschubbeeinflussung 0 % - 120 %
max. Werkstückgewicht von Spannmittelvorderkante 400 kg
mit Reitstock 1000 kg
mit Reitstock und 1 Setzstock 1300 kg
mit Reitstock und 2 Setzstock 1600 kg
Hauptspindel:
Spindel / Bohrung / Spindel Ø im vorderen Lager DIN 52027 - A 8 / Ø62 / Ø100
Innenkegel der Hauptspindel metr. 70
Antriebsleistung 25 kW 60%; 20 kW 100% ED
Drehmoment max. 1800 Nm / 1400 Nm
2 Getriebestufen
Drehzahlbereich 3-2500 1/min
Drehzahlbereich Getriebestube 1: 3-500 1/min
Drehzahlbereich Getriebestube 2: 15-2500 1/min
Werkzeug:
Revolver SAUTER 8fach: Ø40
Revolver Nr.: 0.5.480.516-089768 ComNr 06.09216
Werkzeugaufnahmen DIN 69880 / Ø50
Drehmeissel - Querschnitt nach DIN 770 h x b 32 x 25
Reitstock:
Pinolendurchmesser Ø100
Innenkegel Pinole MK 5
Weg 190
Kühlung:
freq.geregelt 1bar/10ltr - 4bar/20ltr; 2 stufig programmierbar
Abmessungen:
max. Maschinengröße (ohne Späneförderer) 4300 x 2131 x 1973 mm
Platzbedarf (incl. Späneförderer) 6648 x 2735 x 1973 mm
Zubehör:
3-Backenfutter, Durchmesser 250 mm
Späneförderer KNOLL, Baujahr 2015 !
feststehende Lünette
mitlaufende Lünette
diverse Werkzeughalter
2 Späneschutztüren
