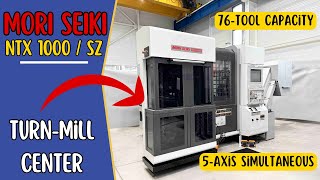

Mori Seiki NTX 1000 / SZ metal lathe
SAINT-GENIX-LES-VILLAGES
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+33 4 86 11...
Show
+33 4 86 11 77 77
France, Saint-Genix-les-Villages
Spain, España
Spain, España
Spain, España
France, Saint-Chamond
Spain, España
Germany, Karlsbad
France, Saint-Chamond
France, Saint-Chamond
Poland, Polonia
France, Bellignat
TECHNICAL CHARACTERISTICS :
Year of manufacturing : 2011
CNC control: FANUC MSX-711 IV
Number of simultaneous axes: 5
Max. cutting diameter: 370 [mm]
Max. turning length: 424 [mm]
Stroke Y axis : 105
Stroke Z1 axis : 460 [mm]
Stroke X1 axis : 380 [mm]
Stroke Z2 axis : 610 [mm]
Stroke X2 axis : 155 [mm]
B axis swivelling stroke : 120 [°]
B axis indexing precision : 0.0001 [°]
Milling head max. speed : 12000 [rpm]
Milling head spindle attachment : Capto C5
Max. milling spindle power : 9 [kW]
Tool magazine capacity : 76
Max. tool lenght : 250 [mm]
Max. tool diameter : 130 [mm]
Max. weight of single tool : 5 [Kg]
Rapid traverse rate X1 axis : 40000 [mm/min]
Rapid traverse rate X2 axis : 20000 [mm/min]
Rapid traverse rate Z axis : 50000 [mm/min]
Rapid traverse rate Z2 axis : 36000 [mm/min]
Rapid traverse rate Y axis : 40000 [mm/min]
Spindle nose : JIS A2-6
Spindle throughbore : 73 [mm]
Max. spindle speed : 6000 [rpm]
Increment C-axis : 0.0001 [°]
Spindle power : 11 [kW]
Counter spindle nose : G6 flat nose
Counter spindle throughbore : 38 [mm]
Max. counter spindle speed : 6000 [rpm]
Counter spindle increment C-axis : 0.0001 [°]
Counter spindle power : 7.5 [kW]
Counter spindle torque : 37 [Nm]
Max. tool holder cross-section : 20 [mm]
Number of tool stations : 10
Total power required : 48 [kVA]
Number of cutting hours : 9867 [h]
Weight : 8950 [Kg]
EQUIPMENT INCLUDED:
x1 MAPPS IV operating system
x1 RENISHAW tool probe
x1 RENISHAW part probe interface (laser sensor and software option installed)
x1 KITAGAWA BB208 - Ø208 [mm] chuck
x1 blowing spindle chuck
x1 KITAGAWA N05 chuck - Ø135 [mm]
x1 blowing of counter-spindle chuck
x1 through tool spindle coolant
x1 chip conveyor (right exit)
x1 coolant gun
x4 foot pedals (clamping/unclamping chucks 1 and 2)
x6 static tool holders
x1 3-colours status lamp
x1 electrical transformer
x1 high pressure collant pump
x1 set of axle clamps for transporting the machine
x1 set of technical manuals
FANUC OPTIONS INCLUDED :
x1 A02B-0306-J713 - 31i-A5 3-D Coordinate System Conversion
x1 A02B-0306-J815 - 31i-A5 Polar Coordinate Interpolation
x1 A02B-0306-J819 - 31i-A5 Helical Interpolation
x1 A02B-0306-J828 - 31i-A5 Rigid Tapping
x1 A02B-0306-J852 - 31i-A5 CS Contour Control
x1 A02B-0306-J926 - 31i-A5 Tool Offset, 99 Pairs
x1 A02B-0306-J930 - 31i-A5 Tool Radius (Cutter) Compensation and Tool Nose Radius Compensation
x1 A02B-0306-J947 - 31i-A5 Part Program Memory, 1 MB
x1 A02B-0306-R512 - 31i-A5 Nano Smoothing II
x1 A02B-0306-S676 - 31i-A5 Tilted Working Plane Command - Conventional
x1 A02B-0306-S687 - 31i-A5 Nano Smoothing
x1 A02B-0306-S737 - 31i-A5 Data Server Function
x1 A02B-0306-S808 - 31i-A5 AI Contour Control II
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
